Lithium Battery Cube 14KWH Lifepo4 48V 280Ah

Cell Type: Grade A Prismatic Lifepo4 Cell 3.2V 280Ah
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Energy: 14.336Wh
Continuous Working Current: 200 A
Peak Working Current: 600 A
Cycle Life: 6000 Cycles
Dimensions: 665*635*223mm
Weight: 121kgs
Connection in Paralels: Max. 16pcs
Communication: RS485, RS232, CAN
Warranty: 5 to 10 Years

EMAIL

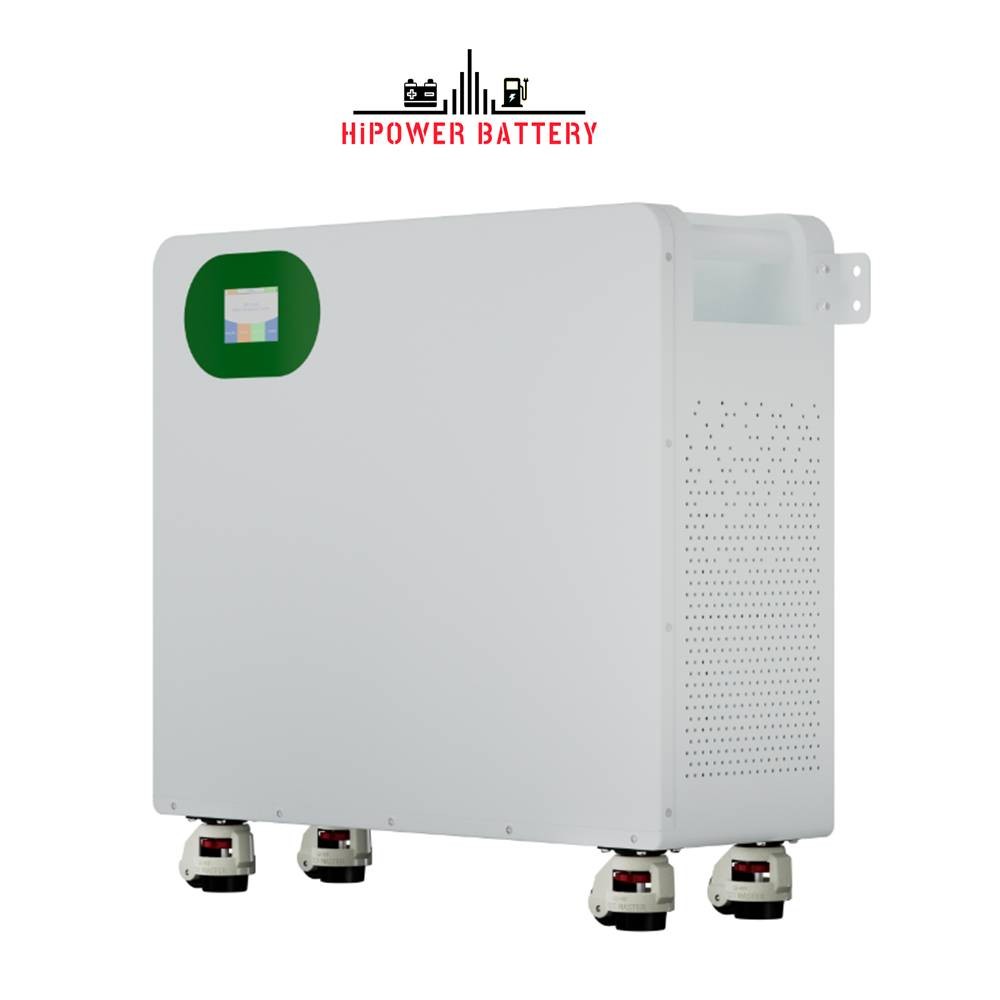

HiPOWER 14KWH Lithium Battery Cube LiFePO4 51.2V 280Ah

Grade A LiFePO4 cells with automotive-grade steel band strapping technology,

ensuring military-level safety and extreme durability. 14.3kWh massive energy in 0.08m³

compact design!

Smart BMS with Bluetooth/Wi-Fi control, heavy-duty lifting casters, and scalable to 214.5kWh

via 15-unit parallel connection.

Specification

Product Parameters

Model

HPES01

Battery Type

LiFePO4

Nominal Voltage

51.2V

Nominal Capacity

280Ah

Nominal Energy

14.3kWh

Recommend SOC Window

SOC:0%~100%

Communication

CAN/ RS485/ RS232

Wireless Communication

Bluetooth (Use the APP)/ WiFi (Connect to the Internet)

Screen

3.5-Inch Touch Screen

Actual Volumetric Efficiency

100% Nominal Energy

Recommend Charge Current

 100A

Max. Charge Current

200A

Continuous Discharge Current

200A

Recommend Max. Load Power

8.2kW

Ultimate Max. Load Power

10.2kW

Recommend Charge Voltage

57.6V

Charge Cut-off Voltage

58.4V

Balancing Open Voltage

52.8V

Low Voltage Disconnect

44.8V

Discharge Cut-off Voltage

40V

Enclosure IP Protection

IP24

Dimensions (LxWxH)

665x635x223mm or Customized

Net Weight

121KGS

Shipping Package

UN3480 Excepted Wooden Crate

Certifications

UN38.3/MSDS/IEC62619/CE/FCC

Cycle Life

6000 Cycles (@100% DOD)

Service Life

15+ Years

Warranty

5-10 Years


Support OEM/ODM Service

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

* Customize Bluetooth APP


Application Scenarios

* Home Energy Storage:

No more blackouts. Keep essentials like AC and refrigerators running.

* Commercial Backup Power:

Stable off-grid power for shops. Zero downtime for your business.

* Renewable Energy Integration:

30% higher green energy utilization with efficient solar/wind storage.


Matched Inverter Brands:

PYLON/Growatt/Voltronic/Luxpowertek/WOW/Schneider/Deye/Victron/Schneider

Sorotec/SMA/GoodWe/STUDER/MUST/GINLONG/Senergy/TBB/MEGAREVO/AISWEI, and so on.

More brands can contact us to provide inverter names for customization

Matched Inverter Brands.jpg



Application Scenarios:

HiPOWER Battery Applications.JPG


Certifications:

HiPOWER Certification.JPG



Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields.

Shenzhen High Power Battery Technology Co., Ltd, is a professional and reliable Hi-tech manufacturer of lithium battery and energy storage products. HiPOWER headquarter located in Shenzhen, owns two factories, one in Shenzhen with area over 7000 m² and more than 200 employees, another one in Huizhou City with area more than 10000 m² and more than 250 employees. HiPOWER owns and operates automatic production lines, a full range of test equipment and an advanced MES that collectively address all aspects of its manufacturing process, from electronics, software design to module assembly, battery assembly as well as initial and final testing.

As a renewable energy innovator, HiPOWER is committed to the mission of achieving energy sustainability while creating a better life for human beings. We have always adhered to the concept of innovation and customer-oriented development, environmental protection and green development. We will continuously enhance our innovation ability, outstanding production capacity and increasingly perfect delivery ability to deepen the cooperation with customers all over the world.
