Cell Type: Grade A Prismatic Lifepo4 Cell 3.2V 314Ah
Nominal Voltage: 51.2V
Nominal Capacity: 3140Ah
Energy: 16.076Wh
Continuous Working Current: 200 A
Peak Working Current: 600 A
Cycle Life: 6000 Cycles
Dimensions: 665*635*223mm
Weight: 121kgs
Connection in Paralels: Max. 16pcs
Communication: RS485, RS232, CAN
Warranty: 5 to 10 Years

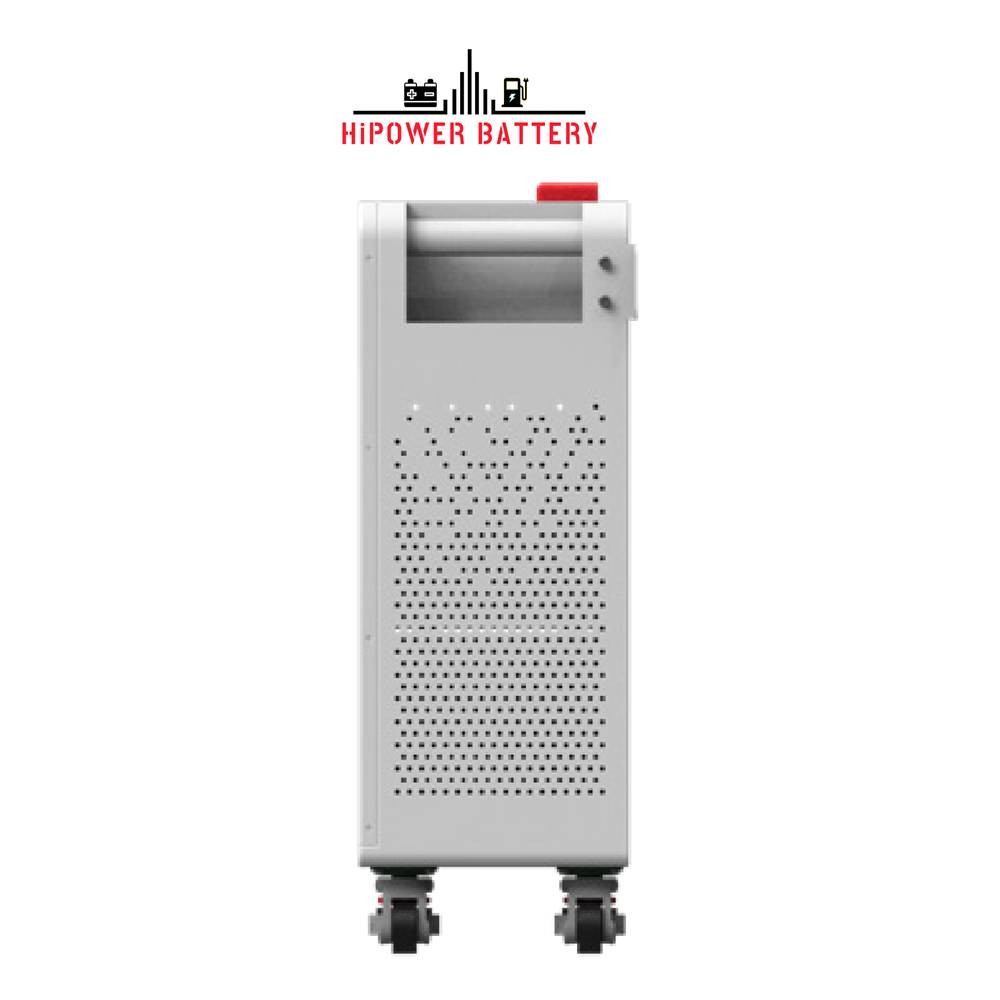

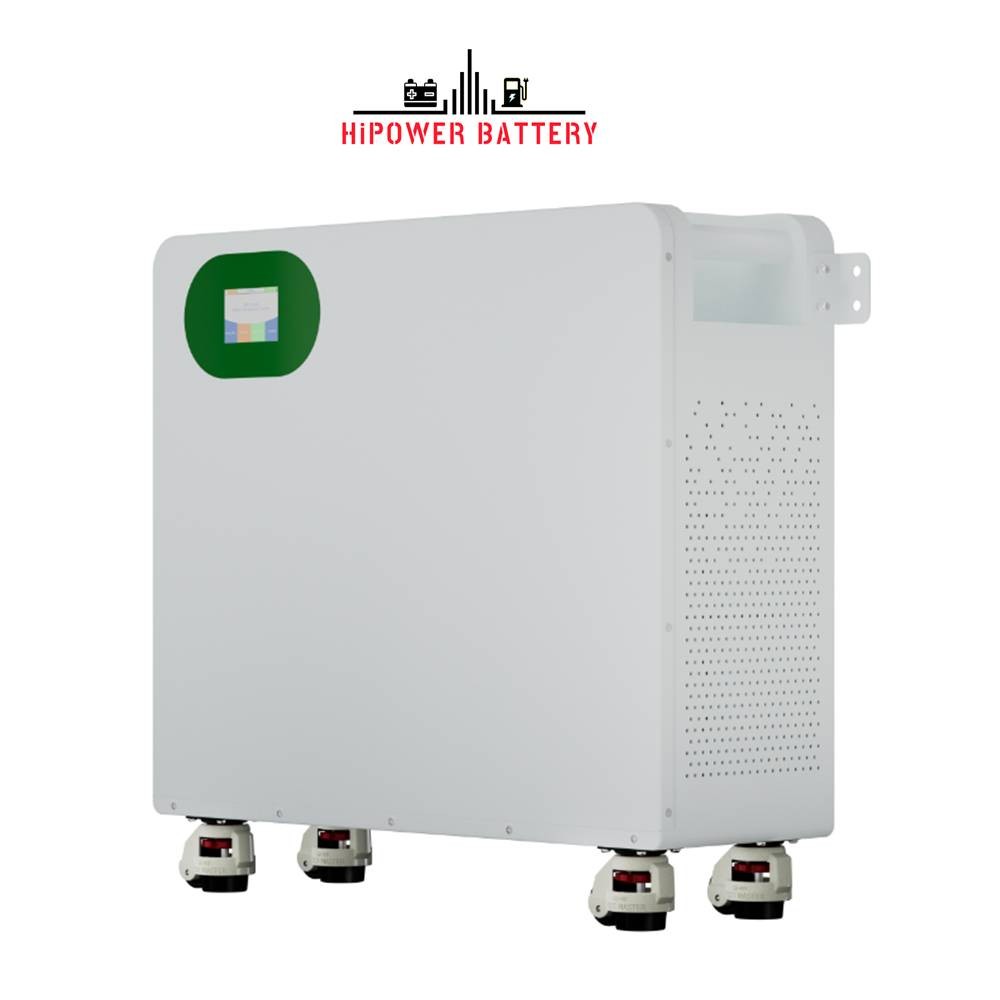

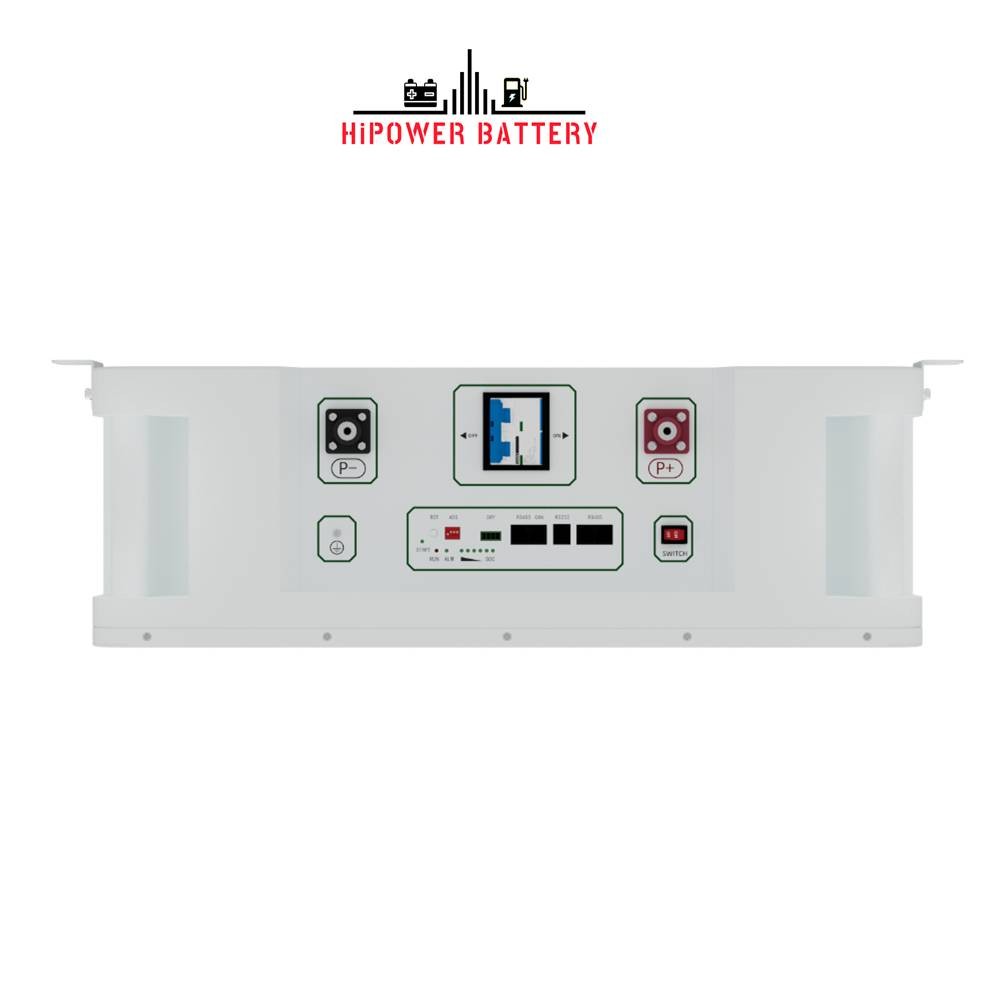

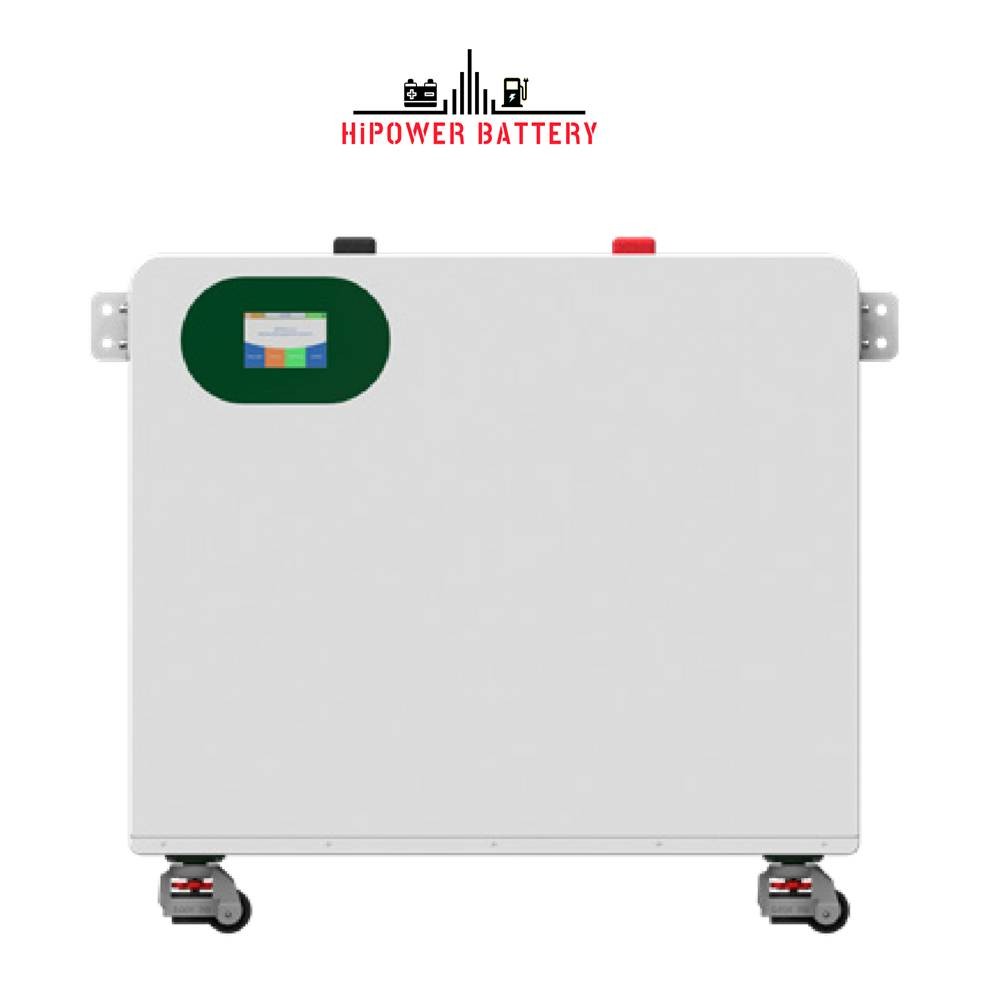

HiPOWER 16KWH Lithium Battery Cube LiFePO4 51.2V 314Ah
Grade A LiFePO4 cells with automotive-grade steel band strapping technology,
ensuring military-level safety and extreme durability. 16kWh massive energy in 0.08m³
compact design!
Smart BMS with Bluetooth/Wi-Fi control, heavy-duty lifting casters, and scalable to 214.5kWh
via 15-unit parallel connection.
Specification
Product Parameters | |
Model | HPES02 |
Battery Type | LiFePO4 |
Nominal Voltage | 51.2V |
Nominal Capacity | 314Ah |
Nominal Energy | 16.076kWh |
Recommend SOC Window | SOC:0%~100% |
Communication | CAN/ RS485/ RS232 |
Wireless Communication | Bluetooth (Use the APP)/ WiFi (Connect to the Internet) |
Screen | 3.5-Inch Touch Screen |
Actual Volumetric Efficiency | 100% Nominal Energy |
Recommend Charge Current | 100A |
Max. Charge Current | 200A |
Continuous Discharge Current | 200A |
Recommend Max. Load Power | 8.2kW |
Ultimate Max. Load Power | 10.2kW |
Recommend Charge Voltage | 57.6V |
Charge Cut-off Voltage | 58.4V |
Balancing Open Voltage | 52.8V |
Low Voltage Disconnect | 44.8V |
Discharge Cut-off Voltage | 40V |
Enclosure IP Protection | IP24 |
Dimensions (LxWxH) | 665x635x223mm or Customized |
Net Weight | 121KGS |
Shipping Package | UN3480 Excepted Wooden Crate |
Certifications | UN38.3/MSDS/IEC62619/CE/FCC |
Cycle Life | 6000 Cycles (@100% DOD) |
Service Life | 15+ Years |
Warranty | 5-10 Years |
Support OEM/ODM Service
* Customize Battery Size/ Color/ Logo, etc.
* Customize Battery Capacity, Working Current;
* Customize Battery Connector/ Charger
* Customize Bluetooth APP
Application Scenarios
* Home Energy Storage:
No more blackouts. Keep essentials like AC and refrigerators running.
* Commercial Backup Power:
Stable off-grid power for shops. Zero downtime for your business.
* Renewable Energy Integration:
30% higher green energy utilization with efficient solar/wind storage.
Matched Inverter Brands:
PYLON/Growatt/Voltronic/Luxpowertek/WOW/Schneider/Deye/Victron/Schneider
Sorotec/SMA/GoodWe/STUDER/MUST/GINLONG/Senergy/TBB/MEGAREVO/AISWEI, and so on.
More brands can contact us to provide inverter names for customization

Application Scenarios:

Certifications:
